Decorative Perforated Stainless Steel Sheet Metal for custrain wall exterior facade decoration

Short Description:

Origin: China

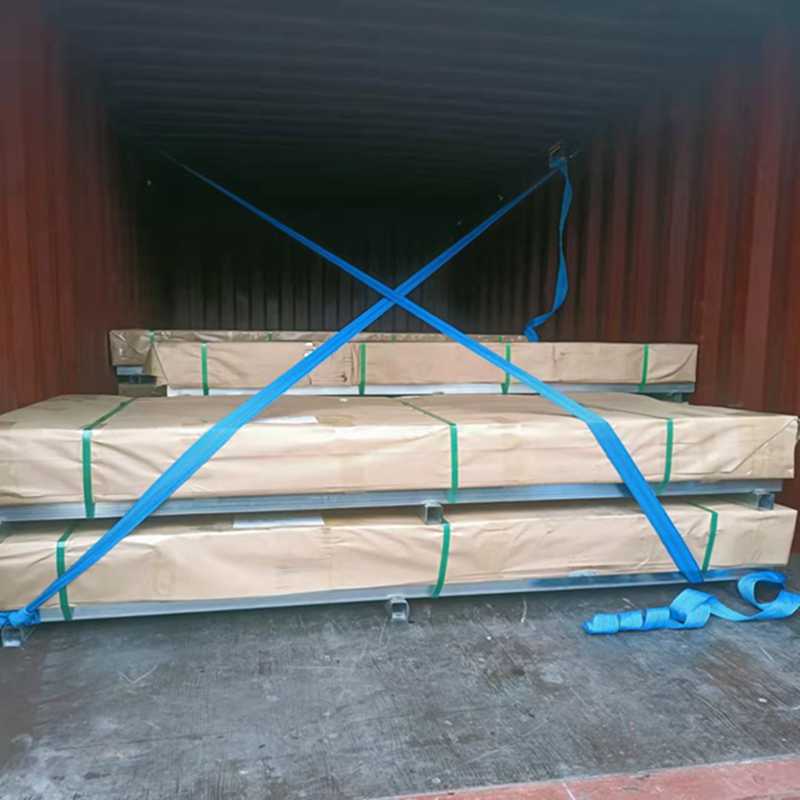

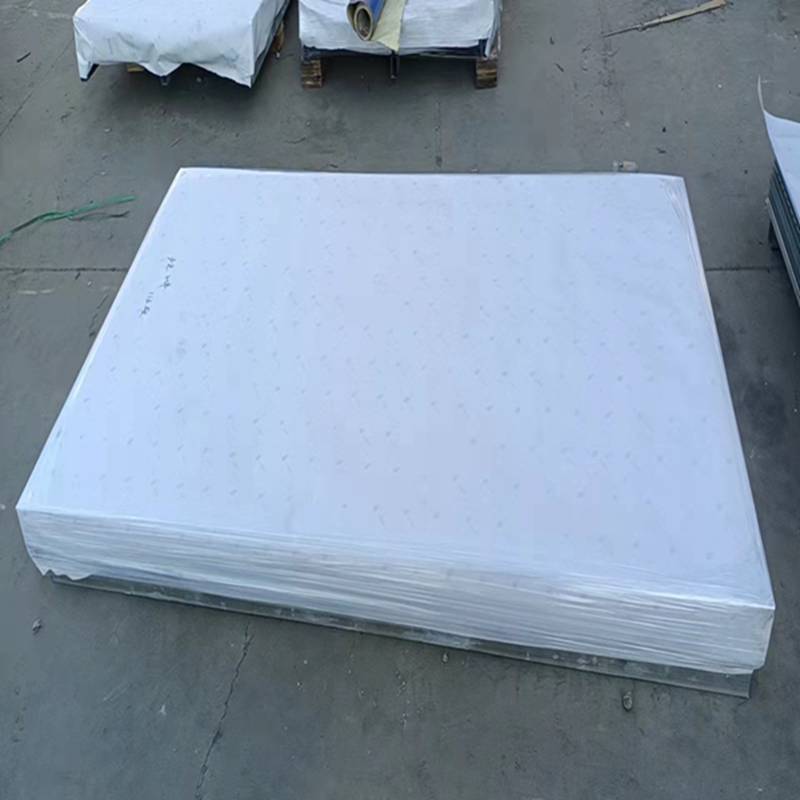

Shipping: 20ft, 40ft, bulk vessel

Port: Tianjin

Payment Terms: L/C,T/T,western union

Send email to us Catalogue Download

Product Detail

Product Tags

1, Material: low carbon steel, stainless steel, aluminium, AL-MG alloy ...

2, Hole type: as customer's request
3, ISO9001:2000 certificate

4, Delivery time: according to the quantity

5, Payment: T/T

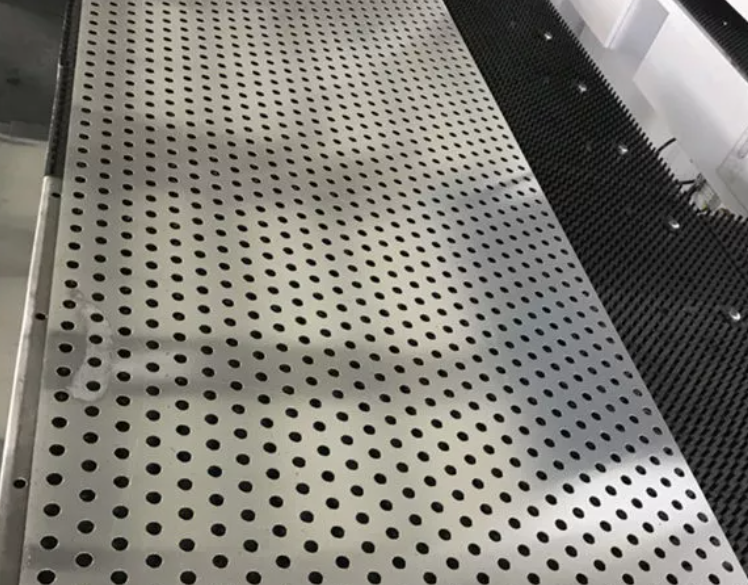

6, Characteristic: the metal is punched to mesh sheets, corrosion-resisting, long-lasting, winding-resisting, smooth-surface ...

7, Technical Data can be as your request.

8,Usage:

widely used in the core of filter, medicine, filtering, breeding, battery, mechanical protecting, making the crafts, the meshes for the high-grade sound box, decoration, the seating for children, baskets, etc.

Hole Diameter		Staggered Centers	Sheet Thickness		Open Area
0.045"	1.14mm	0.066«	0.033-0.039"	0.84-0.99mm	37.00%
1/16"	1.59mm	3/32"	0.027-0.033"	0.68-0.84mm	41.00%
1/16"	1.59mm	1/8"	0.027-0.066"	0.68-1.68mm	23.00%
5/64"	1.98mm	1/8"	0.027-0.053"	0.68-1.35mm	35.00%
0.081"	2.06mm	1/8"	0.053-0.066"	1.35-1.68mm	38.00%
3/32"	2.38mm	5/32"	0.053-0.066"	1.35-1.68mm	33.00%
1/8"	3.17mm	3/16"	0.027-0.127"	0.68-3.23mm	40.00%
5/32"	3.97mm	3/16"	0.027-0.066"	0.68-1.68mm	63.00%
3/16"	4.76mm	¼"	0.027-0.127"	0.68-3.23mm	50.00%
1/4"	6.35mm	3/8"	0.033-0.111", 0.25"	0.84-2.82mm, 6.35mm	40.00%
3/8"	9.52mm	½"	0.053-0.082", 3/16"	1.35-2.08mm, 4.76mm	51.00%
3/8"	9.52mm	9/16"	0.059", 0.119"	1.50mm, 3.02mm	40.00%
1/2"	12.70mm	11/16"	0.033-0.127", 3/16"	0.84-3.23mm, 4.76mm	48.00%
1/4" Hex	6.35mm Hex	0.285	0.027-0.033	0.68-0.84mm	76.00%

Product application

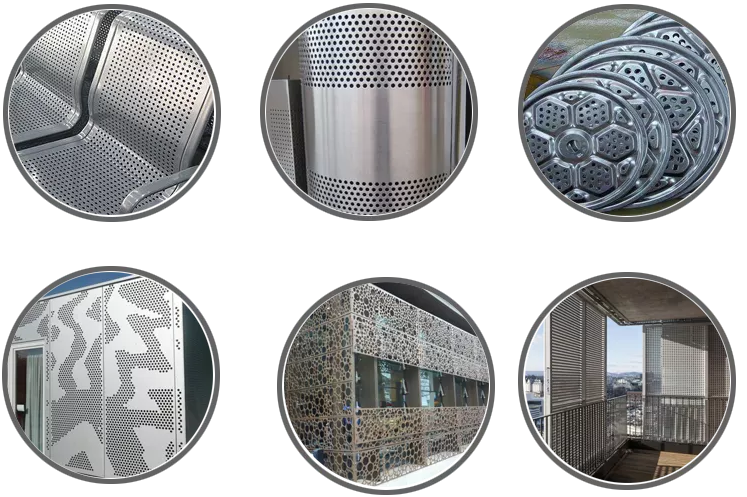

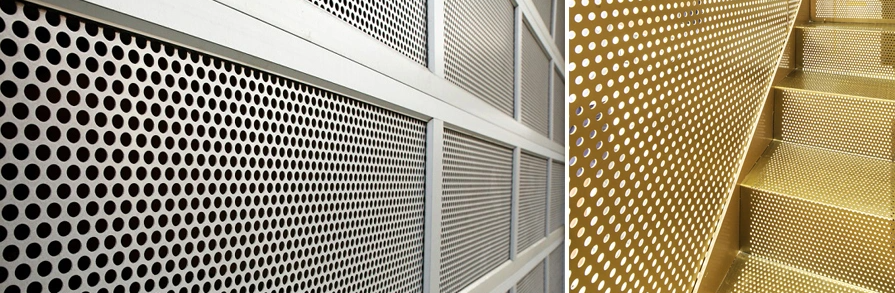

The application of perforated metal:

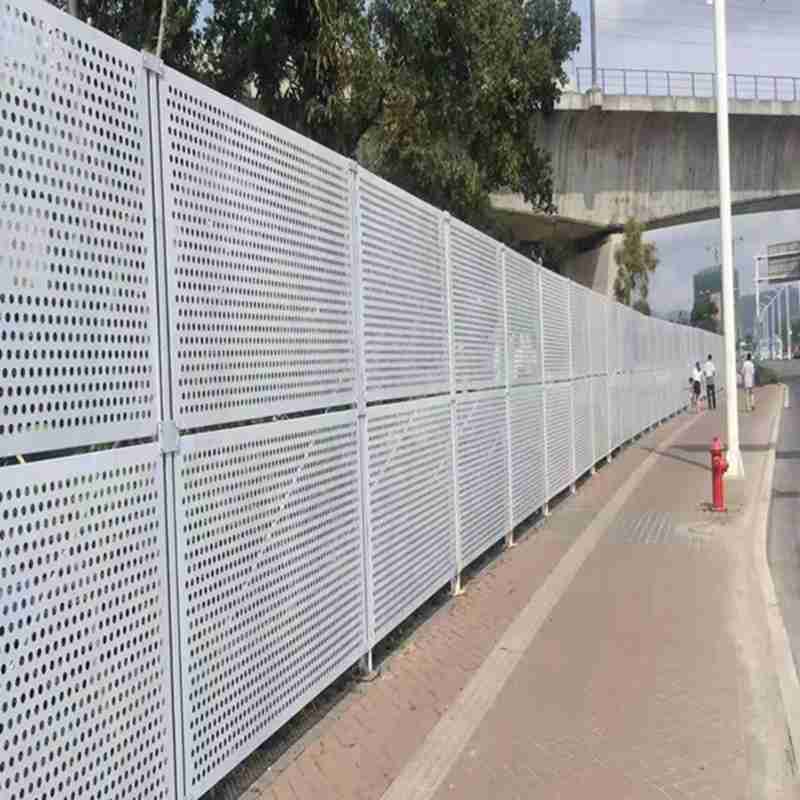

Used for environmental noise control barriers, such as, highway, railway, subway, etc.

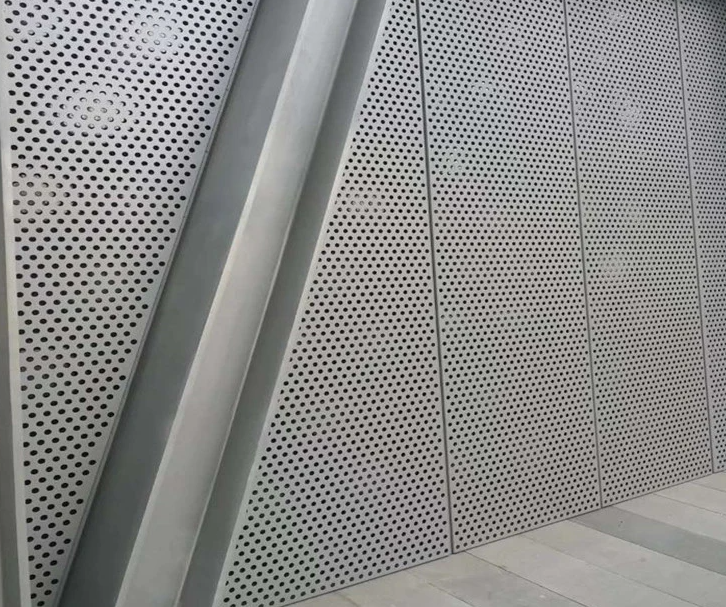

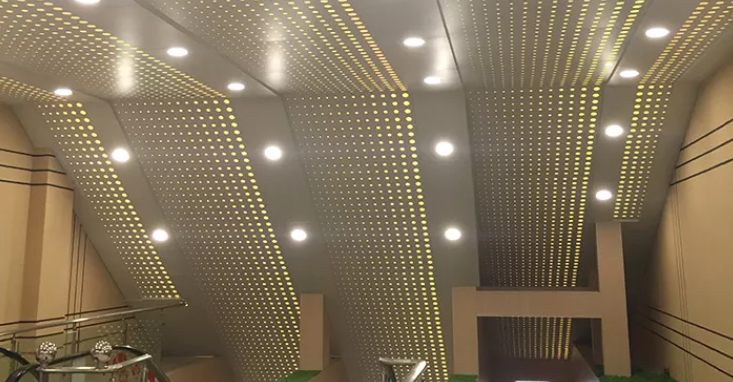

As sound-absorbing material of the building ceiling and wall.
Protective cover for the machinery and equipment, ornate speaker enclosures.
Used as kitchenware, such as, stainless steel fruit basket, food cover, fruit tray, etc.
Shopping network with shelves, decorative exhibition units.
Grain storage within the ventilation network, soccer turf seepage water treatment network, and so on.
